LC To LC 6 Strand Multimode OM3 OFNR Breakout Cable 3.0mm Aqua

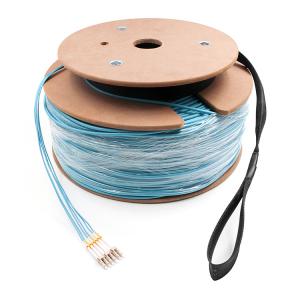

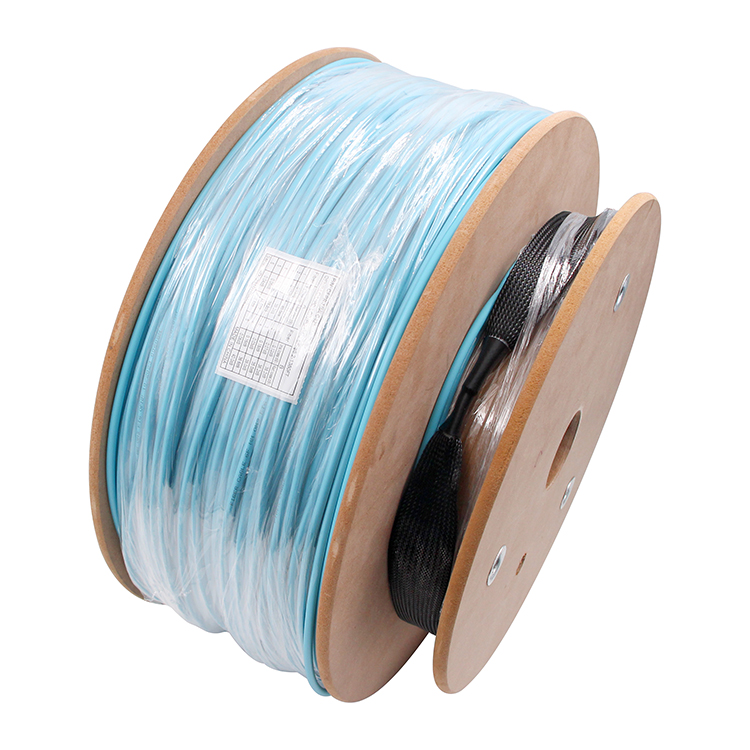

Breakout Cable is a type of fiber optic cable that contains multiple fibers, with multiple branches branching off from the trunk cable at both ends so that they can be individually connected to different devices. This design makes Breakout Cable very suitable for application scenarios that require quick connections and disconnections, such as data centers and telecom rooms. This 6 strand breakout fiber optic cable contains 6 multi-mode fibers, and it is terminated with LC connectors at both ends. And one end of the patch cable is equipped with a pulling eye, which makes it convenient for users to insert and remove fiber optic connectors, especially in areas with limited space or dense connectors, improving the convenience and safety of fiber optic connections. And this cable has good flame retardant properties and is suitable for use in vertical main lines inside buildings.
FiberMania’s breakout multi-fiber trunk cables allow individual fibers to be transmitted from one foundation to notably improve cable management within fiber patch panels and other fiber distribution areas. We supply custom cable lengths with 6, 12, 24, 48, 72, or 144 fibers in single-mode or multimode options.
Applications
1. Data center
2. Telecommunication networks
3. Broadband network
4. Various kinds of testing and self-control system
Features
1. Multi-fiber solutions from 4 fiber up to 144 fibers regularly
2. Point-to-point applications
3. 100% tested, test paper shipped with multi-fiber assemblies
4. Available in indoor or outdoor solutions
5. Easy to operate and improve efficiency
Specifications
| Characteristics | Standard Fiber Cable Assemblies |
| Connector Type | SC/LC/FC/ST/MTRJ/MPO/MTP/MU/DIN/SMA |
| Polish Type | PC/UPC/APC |
| Ferrule Materials | Zirconia Ceramic |
| Fiber Type | SM/MM |
| Testing Wavelength | 1310±30/1550±30nm or 850±30/1300±30nm |
| Min. Bend Radius(Fiber Core) | 15mm |
| Min. Bend Radius(Fiber Cable) | 20/10D (Dynamic/Static) |
| Exchangeability | ≤0.2dB |
Insertion Loss(dB) | ≤0.2dB(PC/UPC) |
Return Loss(dB) | MM≥35dB(PC/UPC); SM≥55dB(PC/UPC), ≥55dB(APC) |
| Polarity | A (Tx) to B (Rx) |
| Operating Temp. (C) | -20℃ ~+70℃ |
| Storage Temp. (°C) | -40℃ ~ +85℃ |
FAQ
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.
Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.
Q3: Can you do 3D interferometer test?
A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.
Q4: What is your MOQ of your products?
A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable, you may consider stock the bulk cable with us for your urgent order production.
Q5: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.
Q6: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even can open the new tooling for your specific project.
